Polar Refrigeration: A Trusted Brand for Mid-Range Display Fridges

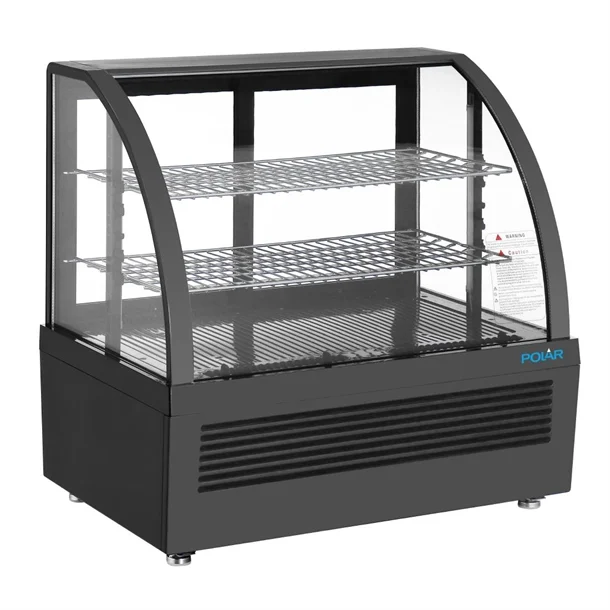

Polar Refrigeration is a well-regarded brand in the UK, particularly favored for mid-range display fridges commonly found in cafes and shops. These units, supplied by Nisbets, are designed with user-friendliness in mind, allowing operators to navigate their features easily. With digital controllers that indicate error codes through simple readouts, identifying and troubleshooting issues becomes a streamlined process. Popular error codes include “E1,” “E2,” and others that point to specific faults.
Common Issues and Diagnosis
Despite their reliability, Polar display fridges may encounter a variety of common issues. The most prevalent problems relate to sensor faults and cooling inefficiencies, often exacerbated by blocked condensers, particularly in the more compact countertop models.
Initial Diagnostics
If you notice that your Polar cake display fridge isn’t cooling adequately, the first step is to check the surrounding environmental conditions. Polar units require ambient temperatures lower than approximately 32°C. They must also be positioned to allow good ventilation around the unit.
Next, ensure that the thermostat is set to the correct temperature and that the unit isn’t inadvertently in off or defrost mode; the digital display may show “OFF” or “def” during these times. If the temperature inside the fridge is frequently cycling or remains warm, it could likely be due to a dirty condenser or blocked airflow.
According to Polar’s user manual, regular cleaning of the condenser is advisable to maintain optimal performance. To clean the condenser coil, always disconnect the power first, then carefully brush or vacuum the coil to remove dust and debris.
Identifying Cooling Problems
Should the fridge run without cooling effectively, inspect the evaporator for any signs of ice buildup. Many Polar fridge models require occasional manual defrosting to prevent ice accumulation. Error codes can expedite the diagnostic process:
“E1”: Indicates a malfunctioning air sensor. If this error code appears, the cabinet’s air temperature probe may have failed or become disconnected. This leads the controller to operate in backup mode, and the sensor requires servicing or replacement.
“E2”: This code signifies a faulty defrost (evaporator) sensor. If detected, initiate a manual defrost and examine the evaporator. If the sensor fails, it will need to be replaced as the unit might still run but won’t manage the temperature effectively.
Additionally, a code that appears frequently is “—” (three dashes), which indicates that the refrigeration system is either turned off or in standby mode. Double-check that the unit hasn’t been left in off mode accidentally.
Polar display fridges may also show “HH” (high temperature) or “LL” (low temperature) readings. These alerts indicate that the temperature sensor is reading outside its designated range – for example, “HH” may show if the cabinet temperature exceeds 45°C. When either of these alarms is triggered, it’s crucial to address the potential causes, which may include overloading the fridge or operating in excessively hot environments.
Fault Code Table – Polar Displays
Understanding the error codes displayed by Polar fridges can significantly enhance your ability to troubleshoot and resolve issues efficiently. Below is a summary of typical fault codes and their meanings:
| Code | Meaning | Explanation / Solution |
|---|---|---|
| E1 | Faulty air sensor | Air temperature probe failure. Solution: Check and replace the sensor to restore proper function. |
| E2 | Faulty defrost sensor | Evaporator sensor failure. Solution: Initiate manual defrost and inspect the evaporator; replace the probe if necessary. |
| “—” | System Off / Standby | Indicates refrigeration is turned off. Solution: Press the power button on the controller to resume cooling. |
| “def” | Defrost cycle active | Unit is in defrost mode. Solution: Wait for approximately 15–20 minutes for the cycle to complete. |
| E13 | Communication error | Communication fault between the display and control board. Solution: Check connections; controller service may be needed. |
| HH / LL | Over-/Under-range temperature | “HH” indicates high temp (>45°C); “LL” indicates low temp (<-45°C). Solution: Verify cabinet conditions; possible sensor replacement needed. |
Maintenance and Best Practices
To ensure the longevity and reliable performance of your Polar display fridge, adhering to regular maintenance practices is crucial. Here are some best practices:
Regularly Clean the Condenser: Maintain a routine cleaning schedule for the condenser to prevent dust accumulation.
Monitor Ambient Conditions: Always verify that the fridge operates in an appropriate environment, avoiding high temperatures and overcrowded conditions.
Inspect and Maintain Seals: Ensure door seals are intact and functioning properly to avoid temperature fluctuations.
Consult the User Manual: Polar’s user manual contains essential troubleshooting steps, including checking power sources and replacing fuses if necessary.
Engage Professional Help: If diagnosis through error codes or general checks indicates a more complex issue, consult a qualified technician for assistance.
Conclusion
Polar Refrigeration’s display fridges offer an excellent balance of reliability and functionality for cafes and shops across the UK. Familiarizing yourself with common faults, effective diagnostic techniques, and maintenance procedures can greatly enhance the performance and lifespan of your unit. By following the insights provided in this guide, you’ll ensure that your Polar fridge remains an invaluable asset to your business, preserving the quality of your baked goods and enhancing customer satisfaction.
